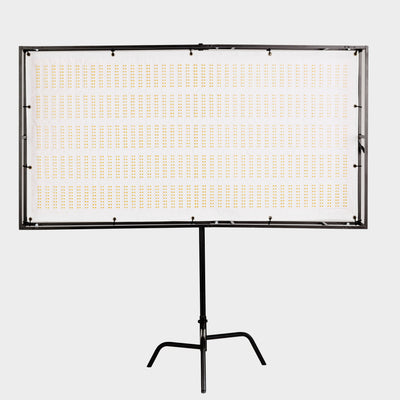

MOSAIC 3X6 Full Kit - M-3X6-KIT
MOSAIC 3x6
The new Aladdin MOSAIC-LITES are the result of years of customer feedback, engineering and perfecting a flexible LED panel.
The MOSAIC-LITES offer new panel sizes you have never seen before from Aladdin Lights.
600W RGBWW
The innovative foldable design, creates endless mounting options for the Aladdin MOSAIC-LITE
All MOSAIC-LITES are RGB panels, have a CRI and TLCI over 95 and offer bluetooth connection to adjust them with the free Aladdin app right from your phone. The MOSAIC plug connection allows you to use gear like the MOSAIC Wired Dimmer (M-WDIM). The dimmer with display offers you physical dialing, a DMX port and built-in Lumenradio. For each MOSAIC size there is a fitting frame with softbox and grid, like you already know from the FABRIC-LITE. More additional accessories for the MOSAIC-LITES are expected for later this year.
For the MOSAIC-LITES we are introducing the fast changeable LED compounds. They allow to replace small LED parts on your panel, without replacing the whole panel. You can either let it get fixed by one of our certified dealers or if you need a faster replacement and have the technical skill to do so, you can do it by yourself. We are providing a step-by-step tutorial video on how to change the LED compounds at home.
HIGH CRI
These lights are made for high-end film and photography productions. All MOSAIC-LITES are RGB panels, have a CRI and TLCI over 95 and offer bluetooth connection to adjust them with the free Aladdin app right from your phone.
SPECIFICATIONS
Light Source: 600W Daylight | 600W Tungsten | 420W RGB
CRI: 95
TLCI: 95
Color Temperature: 2200°K – 12000°K
Beam Angle: 140°
Dimensions panel only: 89x178cm | folded 40c50cm | 4.5kg
Dimensions Frame: 95x183x18cm | 5.5kg
Full kit in case: 45x136x19cm | 20.5kg
Input: AC/DC 100-240V / 48V
DMX: DMX / LumenRadio / Bluetooth
Dimming: 1-100%
In the box:
1x MOSAIC 3X6 LED Panel
1x MOSAIC 600W Power Supply
1x MOSAIC Power Supply Holder for M-600-ACDC
1x Power supply extension cable(2m/6ft)
1x MOSAIC Basic Cable (3m / 9.8ft)
1x MOSAIC Wired dimmer extension Cable (3m / 9.8ft)
1x MOSAIC 3X6 Frame

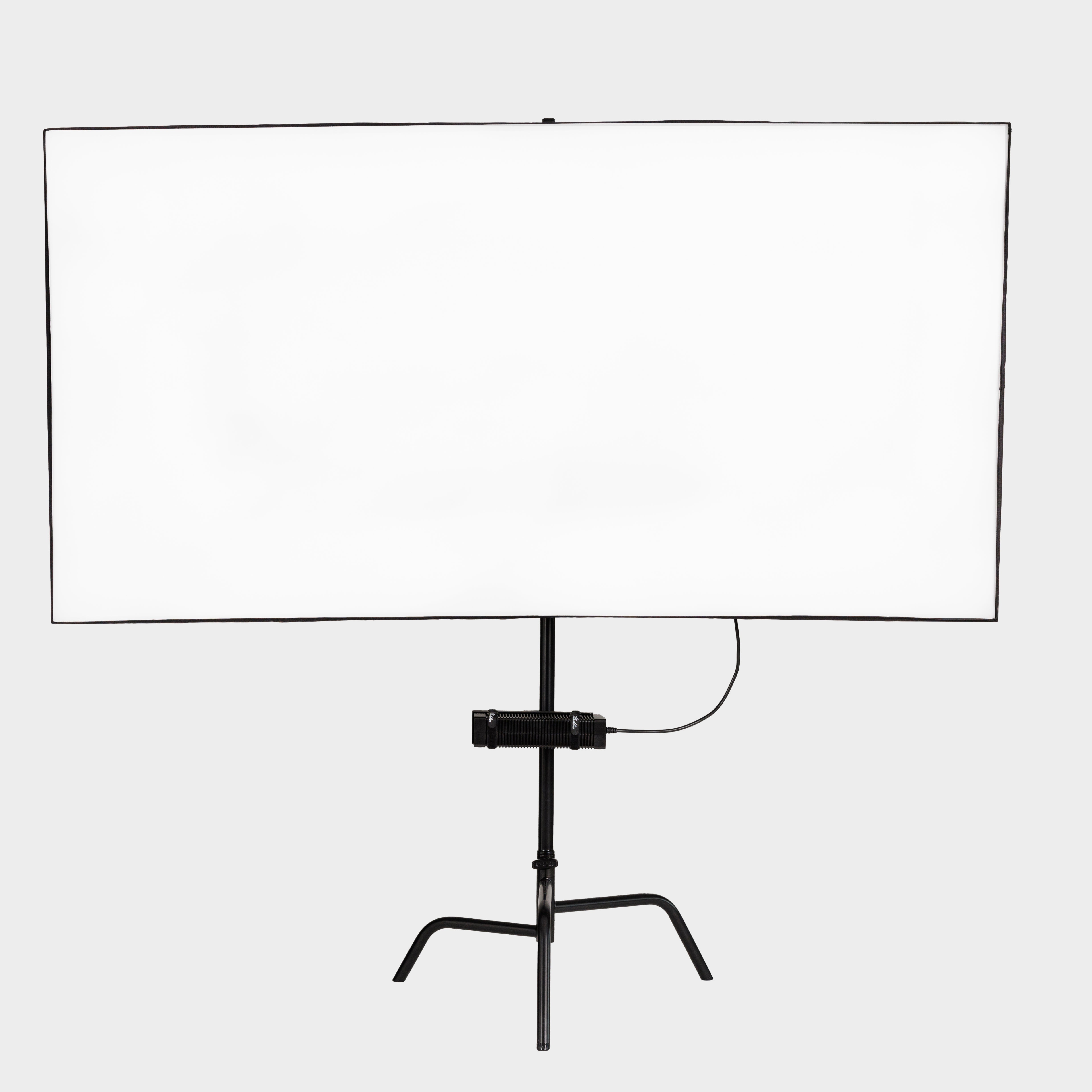

1x MOSAIC 3X6 Diffusor for Frame

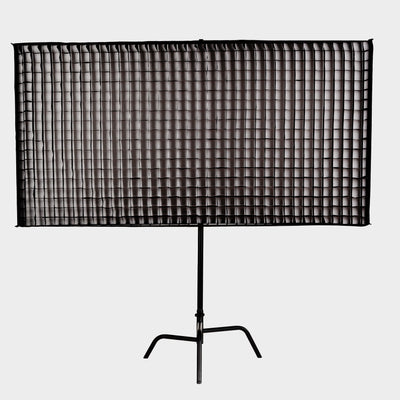

1x MOSAIC 3X6 Grid for Frame
1x MOSAIC Hard Case
1x MOSAIC Wired Dimmer for MOSAIC series with DMX and built-in Lumenradio
2x Inner Bag Smal
16x Aladdin Cube (Bungee Ball)
Optional Accessories:
MOSAIC 4X4 LED Panel - M-4x4-PANEL
MOSAIC 4X4 LED PANELS - M-4X4-PANEL
DIFFUSOR FOR 4X4 FRAME - M-4X4-DIF
GRID FOR 4X4 FRAME - M-4X4-GRID
MOSAIC HARD CASE - M-CASE
INNERBAG SMALL - INNERBAG-S
INNERBAG BIG - INNERBAG-B
WIRED DIMMER FOR MOSAIC - M-WDIM
MOSAIC Wired dimmer extension Cable (3m / 9.8ft) - M-WDEXCA3M
MOSAIC Extension Cable for power supply (3m / 9.8ft) - M-EXCA3M
MOSAIC 600W POWER SUPPLY - M-600-ACAD
STAND ADAPTER FOR MOSAIC - M-001
STAND ADAPTER KNOB - M-SCR
MOSAIC 3X6 Full Kit - M-3X6-KIT
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FAQs
Where are Aladdin products made?
Aladdin products are manufactured in South Korea (ROK)
Are Aladdin products UL or ETL listed?
Aladdin lights are low voltage products, and all of the power supplies and transformers are either UL or ETL listed.
Where does my order ship from?
Southern California
What apps can I use with Aladdin products?
The "All in App" for the Aladdin "All-In" and
Aladdin "Mosaic" products is available for Apple or Android.
The "Lampora" app for the Aladdin ALITE-2 is available for Apple or Android Other open source and paid DMX wireless control apps such as Luminair, and Blackout will also work with some Aladdin products such as the Mosaic and ALITE-2 series.
Where can I get repairs, service, and spare parts for my Aladdin lights?
For the U.S. market, most repairs and service can be done at our Southern California location. We do stock some replacement parts, and most can be obtained within a week.
